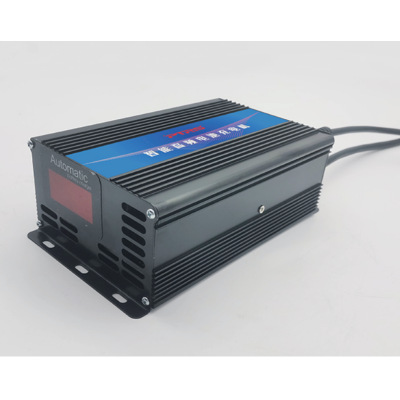

300W High Frequency Digital Display Battery charger

This series chargers adopt LED digital display and MCU intelligent control mode. They are suitable for liquid-rich lead-acid batteries, maintenance-free lead-acid battery, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. Widely used in the cycling charge of battery packs in the E-sweeper, E- lifter, etc .

Technical parameters

. Ac input voltage range: 90-130VAC/180-260VAC （for option）; 45-65Hz

. AC max input current:  2A@220VAC

. Noise: ≤60dB

. Net weight: 1kg±0.3kg

. Working temperature: -20°C~＋55°C

. Storage temperature: -40°C~＋95°C

Protective function

. Output overvoltage protection

. Input overcurrent protection

. Output shortcircuit protection

. Fully charge automatic shutdown

. Output no-load protection

. Output reverse connection protection

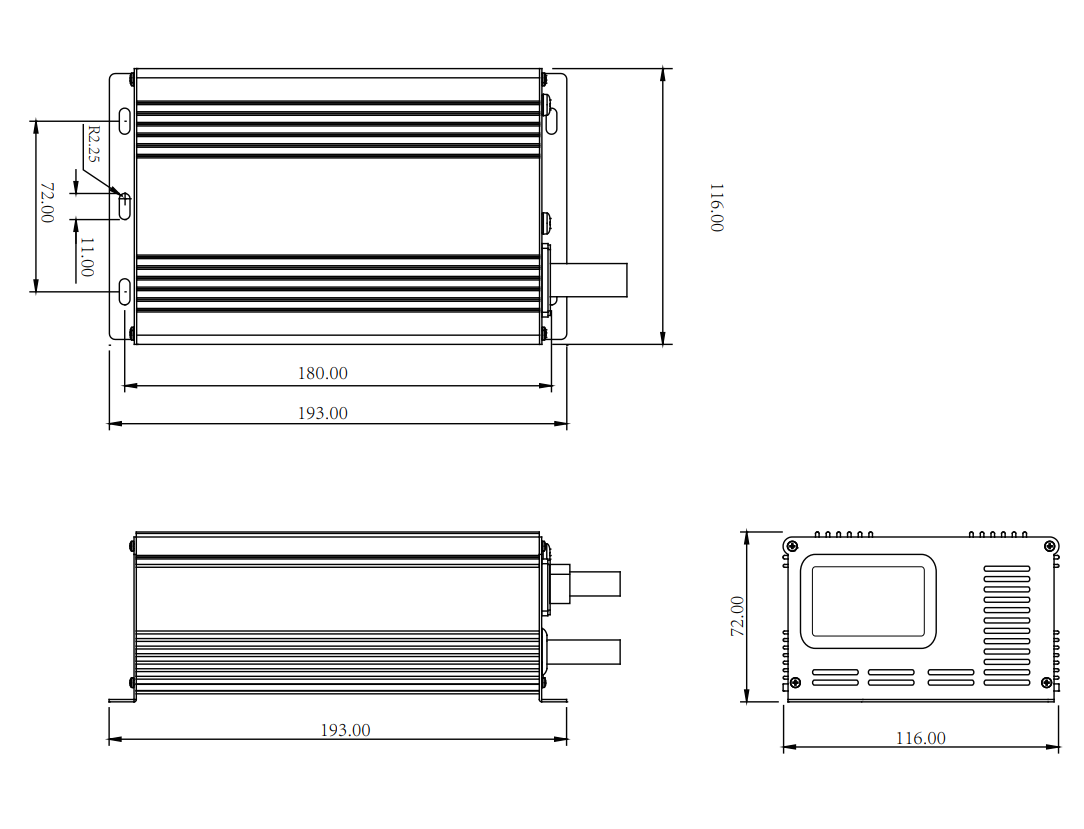

Mechanical Size

Model List
