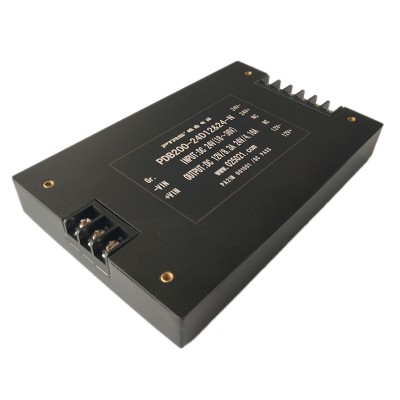

100-350W Dual/Triple Output DC DC Converter
Features
Π type input filter
2X voltage input
Output short circuit protection
Easy installation
Best case attaching mode
Design for high reliability, long lifetime
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
Input Characteristic
Voltage range
12VDC (Normal Rated Value): 9 ~ 18 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC
48VDC (Normal Rated Value): 36 ~ 72 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
600VDC (Normal Rated Value): 400 ~ 800 VDC
Output Characteristic
Voltage set-point accuracy ……………… ±2%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% （Typ）
Output current …………………………………5-40A for optional
Output voltage …………………………………5-48V
Power ……………………………………………100-350W
General Characteristic
Switching frequency …………………… 100-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃
Protection features
Input undervoltage protection Output overcurrent protection
Input overvoltage protection Output short circuit protection
Over temperature protection
Models
Input V. (Vdc) | Input V. range (vdc) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) | Models | ||
SING | 24 | 18-36 | 24 | 14.58 | 200 | 89% | PDB350-24S24-N | |
48 | 36-72 | 24 | 14.58 | 200 | 89% | PDB350-48S24-N | ||
110 | 66-154 | 12 | 25 | 120 | 88% | PDB300-110S12-N | ||
110 | 66-154 | 24 | 12.5 | 200 | 89% | PDB300-110S24-N | ||
600 | 400-800 | 24 | 12.5 | 200 | 89% | PDB300-600S24-N | ||
Dual | 24 | 18-36 | 05&12 | 10&10 | 80&120 | 84% | PDB170-24D05&12-N | |
24 | 18-36 | 05&24 | 10&5 | 100&200 | 84% | PDB170-24D05&24-N | ||
24 | 18-36 | 12&24 | 8&4 | 120&200 | 85% | PDB200-24D12&24-N | ||
Triple | 24 | 18-36 | 05&12&24 | 6&8&4 | 80&120&200 | 84% | PDB230-24T05&12&24-N | |
48 | 36-72 | 05&12&24 | 6&8&4 | 80&120&200 | 84% | PDB230-48T05&12&24-N | ||
Remark: 1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.
2) Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

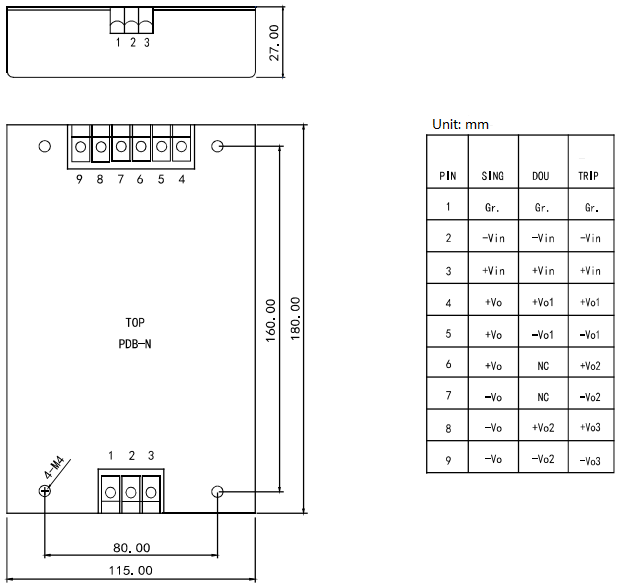

Mechanical Drawing & Pin definition
