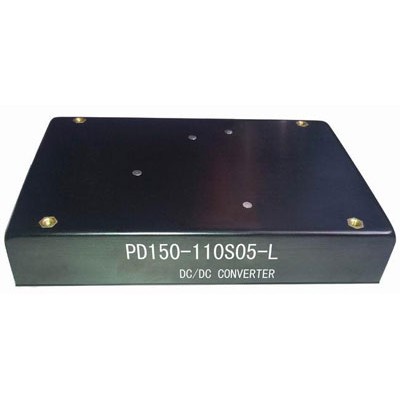

150-300W Pin type dc dc converter
Features
l Wide range of input voltage
l Design for high reliability, long lifetime
l Under & over-voltage protection for output
l Full load efficiency up to 92%
l Fast dynamic response
l Up to 26 power density
l High voltage input, high output power
l Wide range of power, easy to upgrade
Input Characteristic
l Inputvoltage range…………………… 70~140 VDC Rated value: 110VDC
200~400 VDC Rated value: 300VDC
400~800 VDC Rated value: 600VDC
Reverse Protection
Fuse Outside
Output Characteristic
l Output voltage seet-point accuracy……… ±1%
l Line regulation …………………………… ±0.2% (typ)
l Load regulation(10%~100%) …………… ±0.4% (typ)
l Temp. Coefficient…………………………… ±0.01 %/℃
l Output current limiting …………… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 2-30A
l Output voltage …………………………… 5-48V
l Power …………………………………… 150-300W
General Characteristic
l Switching frequency …………………… 160~200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >2000 VDC
Input-case: >2000 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃; Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃
Models
Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
PD150-110S05-L | Single | 110 | 70-140 | 05 | 30 | 50 | 82% |
PD240-110S12-L | Single | 110 | 70-140 | 12 | 20 | 100 | 86% |
PD240-110S24-L | Single | 110 | 70-140 | 24 | 10 | 200 | 88% |
PD150-300S05-L | Single | 300 | 200-400 | 05 | 30 | 50 | 82% |
PD150-300S12-L | Single | 300 | 200-400 | 12 | 12.5 | 120 | 86% |
PD100-300S72-L | Single | 300 | 200-400 | 72 | 1.39 | 700 | 80% |
PD300-300S12-L | Single | 300 | 200-400 | 12 | 25 | 120 | 85% |
PD300-300S15-L | Single | 300 | 200-400 | 15 | 20 | 150 | 87% |
PD200-300S24-L | Single | 300 | 200-400 | 24 | 8.33 | 200 | 88% |
PD300-300S24-L | Single | 300 | 200-400 | 24 | 12.5 | 200 | 88% |
PD300-300S48-L | Single | 300 | 200-400 | 48 | 6.25 | 400 | 92% |
PD400-300S48-L | Single | 300 | 200-400 | 48 | 8.33 | 400 | 92% |
PD150-600S05-L | Single | 600 | 400-800 | 05 | 30 | 50 | 87% |
PD200-600S12-L | Single | 600 | 400-800 | 12 | 16.7 | 120 | 89% |
PD300-600S24-L | Single | 600 | 400-800 | 24 | 12.5 | 200 | 91% |
Remark: Custom-made specifications are acceptable.
Mechanical Drawing & Pin definition
