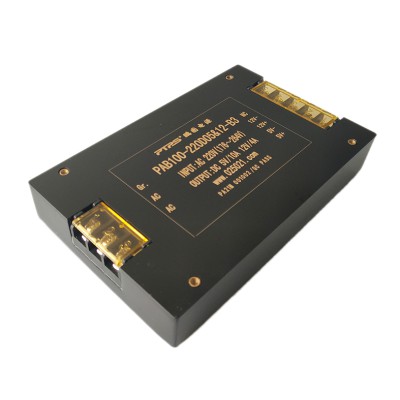

50-150W AC DC Converter

roduct DescriptionFeatureslWide range of input voltagelBroadband noise filter of inputlSurge suppress circuit of inputlComply with UL 1950, IEC950 safety regulationlAttractive outline designlTerminal connection metho

roduct Description



Features



l  Wide range of input voltage

l  Broadband noise filter of input

l  Surge suppress circuit of input

l  Comply with UL 1950, IEC950 safety regulation

l  Attractive outline design

l  Terminal connection method

l  Fast dynamic response



Conditions: All specifications are tested under the room temperature 25, normal rated input voltage and pure negative normal load.



Input Characteristic



 Voltage range

220VAC (Normal Rated Value): 176 ~ 264 VAC



Output Characteristic



l  Voltage set-point accuracy ……………… ±2%

l  Line Regulation (Main) ……….........……… ±0.5%

l  Load regulation (Main) ………........…..........±0.5%

l  Cross regulation ………........….………........±3%

l  Output Current Limited ................................. 120% Typ

l  Output current …………………………………3-20A for optional

l  Output voltage …………………………………5-48V

l  Power ……………………………………………50-150W



General Characteristic



l  Switching frequency …………………… 100-200 KHz

l  Isolation resistance ……………………  200 MΩ

l   Isolation voltage

u  Input-output: >1500 VAC/MIN (Leakage current 5mA)

u  Input-case: >1500 VAC/MIN (Leakage current 5mA)

u  Output-case: >500 VDC/MIN

u  Main-Viice: >500 VDC/MIN

l   Environmental Characteristic

u  Substrate Working Temperature ………Industry: -25-+85
                                   Military I: -
40-+85

                                   Military II: -55-+85

u  Storage temperature …………………… Industry: -45~ +105

                                   Military: -55-+105



Protection features

Input undervoltage protection         Output overcurrent protection

Output short circuit protection         Over temperature protection



Models

Input V. (Vac)

Input V. range (vac)

Output V.(V)

Output Curr. (A)

Ripple &noise pk-pk (mv)

Efficiency  (Typ)

Models

SING

220

176-264

05

20

80

83%

PAB100-220S05-B3

220

176-264

12

10.4

120

84%

PAB125-220S12-B3

220

176-264

24

6.25

200

85%

PAB150-220S24-B3

220

176-264

28

5.36

280

85%

PAB150-220S28-B3

220

176-264

48

3.1

300

85%

PAB150-220S48-B3

DUAL

220

176-264

05&12

10&4

100&120

83%

PAB100-220D05&12-B3

220

176-264

05&24

4&4

80&200

83%

PAB120-220D05&24-B3

220

176-264

12&24

6&3.25

120&200

84%

PAB150-220D12&24-B3

220

176-264

05&28

2&5

50&280

83%

PAB120-220D05&28-B3

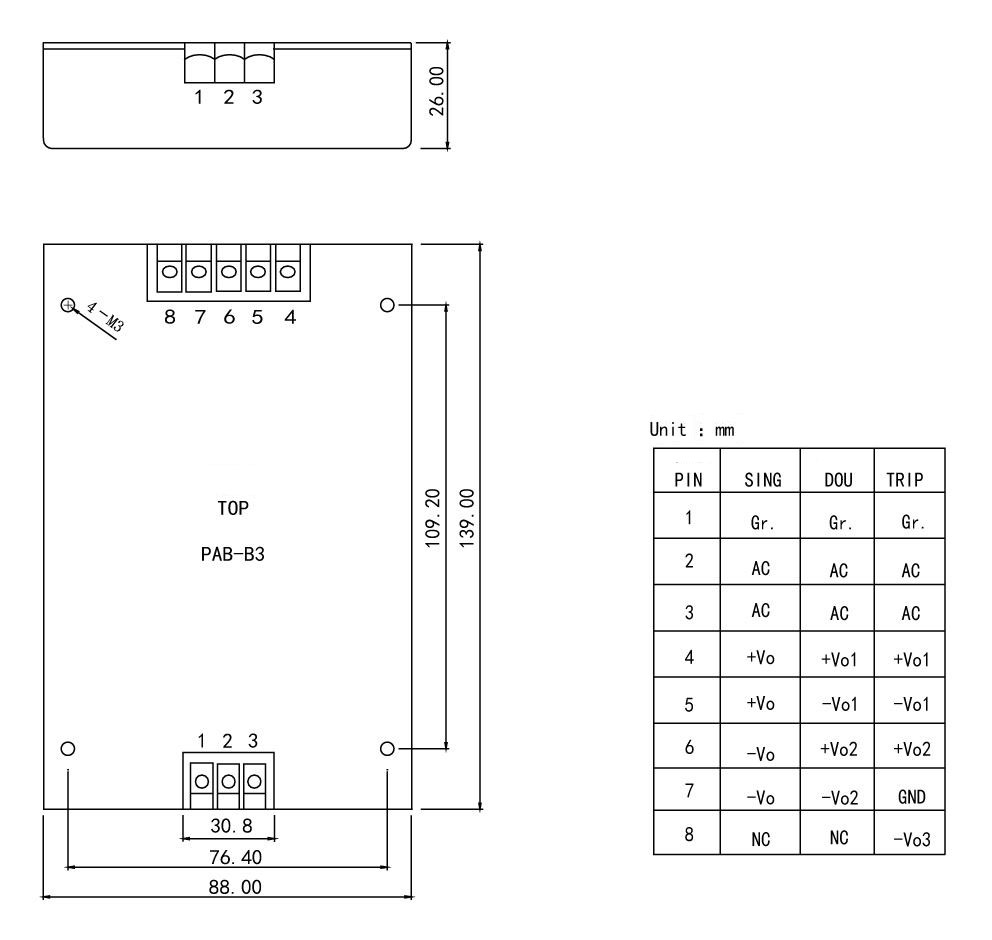

Mechanical Drawing & Pin definition
