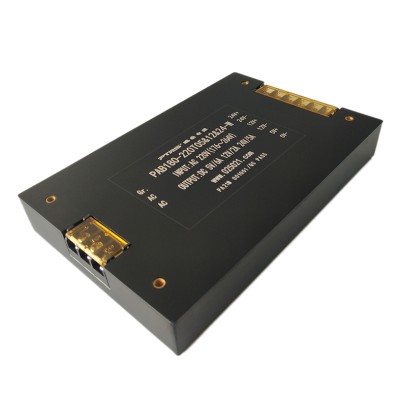

200-300W Wide input voltage range isolated Power Supply
Features
Wide range of input voltage
Broadband noise filter of input
Surge suppress circuit of input
Comply with UL 1950, IEC950 safety regulation
Attractive outline design
Terminal connection method
Fast dynamic response
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
Input Characteristic
Voltage range
220VAC (Normal Rated Value): 100 ~ 240 VAC 176 ~ 264 VAC
Output Characteristic
Voltage set-point accuracy ……………… ±2%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% （Typ）
Output current …………………………………3-60A for optional
Output voltage …………………………………5-48V
Power ……………………………………………200-300W
General Characteristic
Switching frequency …………………… 100-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VAC/MIN (Leakage current ＜5mA)
Input-case: >1500 VAC/MIN (Leakage current ＜5mA)
Output-case: >500 VDC/MIN
Main-Viice: >500 VDC/MIN
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃
Protection features
Input undervoltage protection Output overcurrent protection
Output short circuit protection Over temperature protection
Models
Input V. (Vac) | Input V. range (vac) | Output V.(V) | Output Curr. (A) | Ripple &noise pk-pk (mv) | Efficiency (Typ) | Models | |
SING | 220 | 100-240/176-264 | 05 | 60 | 200 | 90% | PAB300-220S05-W |
220 | 100-240/176-264 | 12 | 25 | 120 | 91% | PAB300-220S12-W | |
220 | 100-240/176-264 | 24 | 12.5 | 200 | 91% | PAB300-220S24-W | |
220 | 100-240/176-264 | 48 | 6.25 | 300 | 92% | PAB300-220S48-W | |
DUAL | 220 | 176-264 | 05&24 | 15&8 | 100&200 | 81% | PAB275-220D05&24-W |
220 | 176-264 | 12&24 | 8.3&8.3 | 120&200 | 83% | PAB300-220D12&24-W | |
220 | 176-264 | 12&19 | 8.3&10.5 | 120&190 | 83% | PAB300-220D12&19-W | |
Triple | 220 | 176-264 | 05&12&24 | 6&2&5 | 80&120&200 | 83% | PAB180-220T05&12&24-W |
220 | 176-264 | 05&12&24 | 6&6&6 | 80&120&200 | 83% | PAB250-220T05&12&24-W | |
Remark: 1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.
2) Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

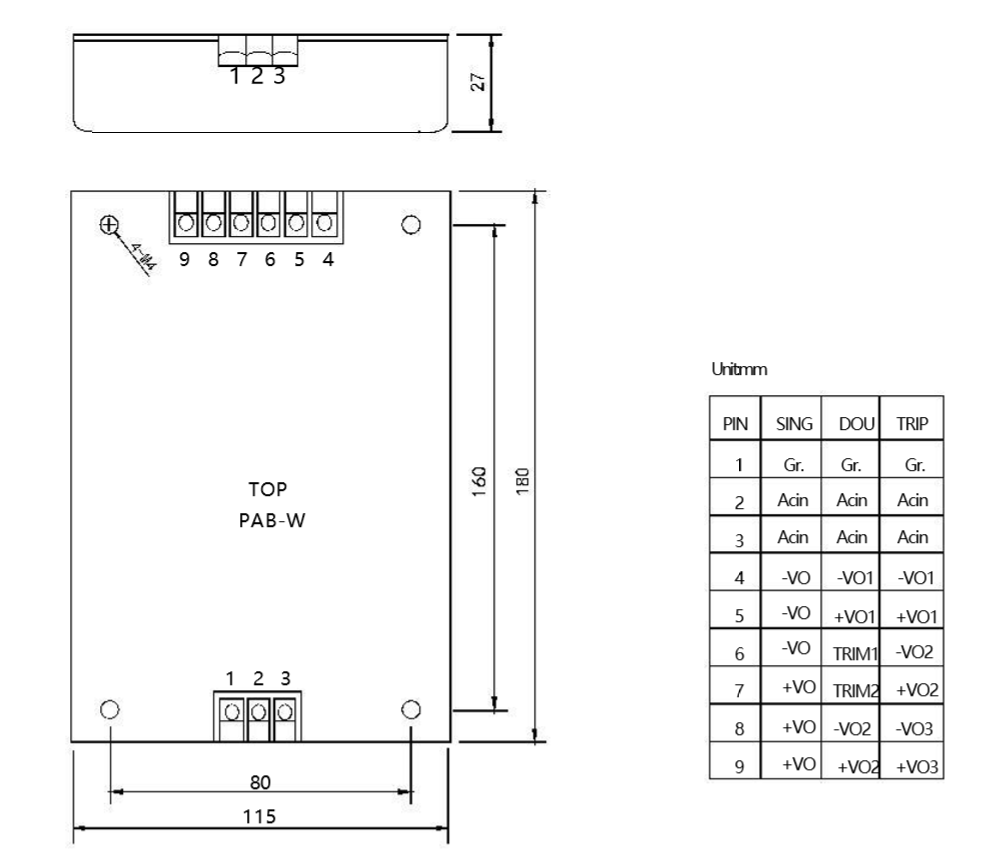

Mechanical Drawing & Pin definition
